| สถานที่กำเนิด | มณฑลเจียงซูประเทศจีน |
| ชื่อแบรนด์ | OUCO |
| ได้รับการรับรอง | CE, CCS, BV, ABS, API-2C |
| หมายเลขรุ่น | OUCO-5T15M-KTB เครน |

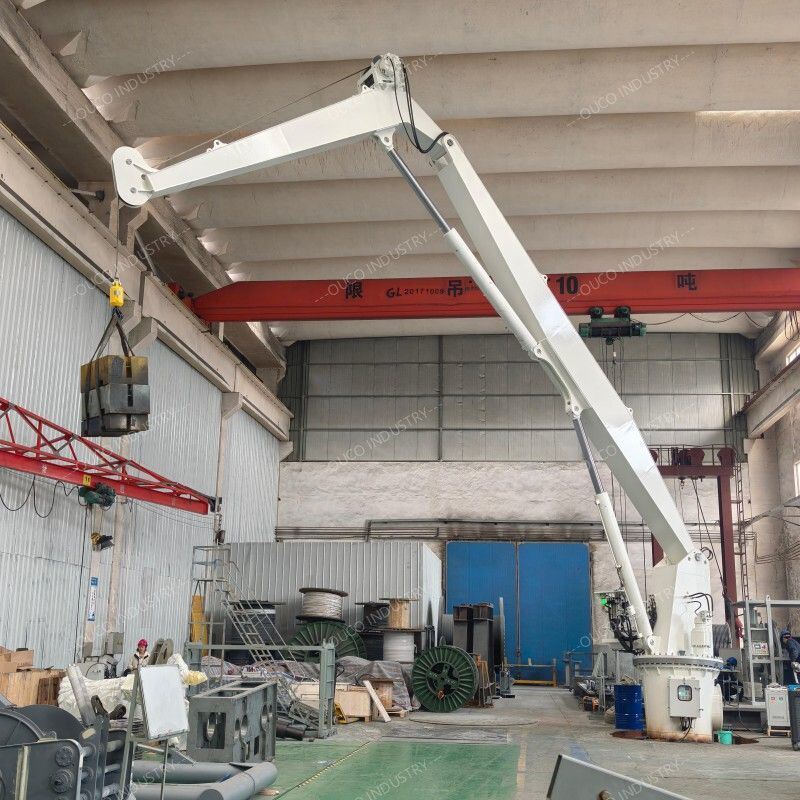

The European offshore wind and marine engineering sectors demand equipment that thrives in high-salinity, complex environments. To meet these rigorous standards, OUCO has developed the customized 5T15M Knuckle Boom Crane, a solution that balances robust power with exceptional agility. Specially engineered for the Demanding European Offshore Sector.
Designed for versatility on specialized vessels, this crane delivers a Safe Working Load (SWL) of 5T at a maximum reach of 15M. Its flexible knuckle boom design accommodates a dynamic working radius ranging from a compact 2.6M up to 15M, allowing for efficient operation even in tight deck spaces. Whether handling wind farm maintenance materials or supporting dredging operations, the crane ensures superior reach with a hoisting height of up to 50M.
Efficiency is at the core of the 5T15M’s design. It features a variable hoisting speed of 0~12m/min and a stable slewing speed of 0.5r/min, supported by continuous 360° rotation.
To further enhance maneuverability, we have upgraded standard hooks to DIN-type swivel hooks. These lighter, stronger hooks allow for unrestricted rotation, enabling operators to navigate loads around obstacles with precision—a critical advantage in confined nearshore engineering.
Built to withstand the corrosive Atlantic marine environment, the crane features a full-link anti-corrosion design, utilizing 316 Stainless Steel for all hydraulic piping and interfaces. This significantly extends service life and reduces maintenance costs.
Safety Guaranteed: Both units have successfully passed testing by Bureau Veritas (BV), meeting advanced international safety standards.
| No. | Parameter Category | Specification |
|---|---|---|
| 1 | SWL | See load chart |
| 2 | Max. Working Radius | 15m (Optimized) |
| 3 | Min. Working Radius | 2.6m |
| 4 | Hoisting Speed | 0~12 m/min |
| 5 | Hoisting Height | 50m (Max) |
| 6 | Slewing Speed | ~0.5 r/min |
| 7 | Slewing Angle | 360° |
| 8 | Luffing Time | ~50 S |
| 9 | Working Condition | Trim ≤2° / Heel ≤5° |
| 10 | Wind Speed | Working: 20m/s / Parking: 55m/s |
| 11 | Elec. Motor | 37KW (480V/60HZ/3P), IP56, Class F |
| 12 | Design Temp. | -10° ～ +40° |
| 13 | Sea Condition | Grade 4 |
Founded in 1984, OUCO INDUSTRY is a leading manufacturer of high-quality marine equipment. With over 40 years of experience, we are recognized for delivering innovative and reliable products tailored to the maritime industry.
OUCO Group can design and manufacture any type of cranes, grabs, and handling equipment according to your requirements.
| Warranty | 12 Months (Extendable) |
| Spare Parts | 1 Set included |
| Certificates | SGS, ISO9001, CE, BV, CCS |
| Delivery | Standard: 1 month / Customized: 2-3 months |
Customize Your Offshore Lifting Solution
For more details or to discuss your project requirements, please contact us. Welcome to visit our factory!
